High volume drainage channels for driveways, patios and footpaths
Order direct from the UK's most sustainable manufacturer of drainage channels for patios and footpaths.
IBRAN-S is the UK rival to the ACO Hexdrain, delivered directly from our own factory. A shorter supply chain saves you money without sacrificing quality - helping you to buy below wholesale rates.
The perfect surface drainage channel for patios, driveways and thresholds. Our design is easy to install and has incredible volume capacity. This comes from the internal structure of the deep, curved gully.

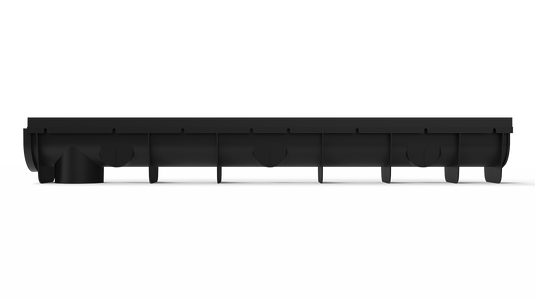

Our A15 load class channel drain is made from 100% recycled polypropylene for high strength and high durability. Our IBRAN-S Plastic Channel Drain A15 is designed with one main vertical outlet that connects directly to your underground drains. Both the IBRAN-S base and grate come in 1m lengths.

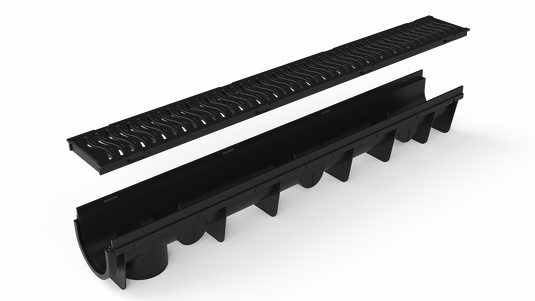

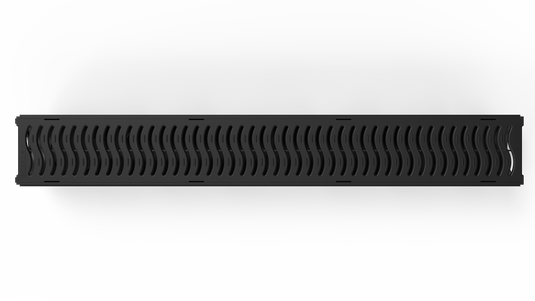

The plastic grating is moulded with non-slip nodules which provide all-weather drainage systems around the garden. In addition to the tried and tested nub structure, the openings in the grating are curved to spread the load underfoot. The grate and gullies are moulded as separate units, allowing for ease of cleaning, low maintenance. IBRAN-S is bolt free, rust free and suitable for heavy duty use like being run over by a car.
IBRAN-S Specifications
| Dimensions: | 1000mm x 140mm x 140mm |
| Outlet: | Connects to 110mm pipe |
| Colour: | Black (others available on request) |
| Weight: | 2200g/drain |
| Load Rating: | A15 |
| Suitability: | Patios, Driveways, Footpaths & Garages |
| Material: | 100% recycled polypropylene |
| Temperature Stability: | -50ºC to +90ºC |
| Environmental: | None toxic, chemically inert & reusable |
| Compliance: | SuDS Compliant |
| Parts: | Channel base & grate |
| Corner Unit: | 140mm (w) x 140mm (b) x 200mm (d) |
| End Cap: | Two sided male/female |
Easy Installation
Tested to loading class A15, the IBRAN-S drainage channel system is designed for domestic driveways and pedestrian use.
Each drain channel slots together to produce one continuous length. The ends of the drains slide and slot into each other to connect up lengthways. The same method allows you to connect up to corner units and end caps.
All Weather Drainage
Each 14cm deep trough carries large volumes of water away, helping to protect your home against flooding and surface water build up. IBRAN-S drainage channels for driveways is a weather-stable, boltless system, resistant to rust and UV damage. This means they will outlast and outperform other drains with perishable components.
Angle away by 5º towards your outlet where you can connect vertically by simply butting together the vertical knock-out outlet with a standard 110mm waste pipe.
