Easily create natural-looking grass parking areas with our heavy duty grass grids.
IBRAN-X's reinforced cellular structure and ridged, bumpy edge profile makes parking on grass practical, with all the durability and hardwearing strength of more conventional grass paving systems. Made from 100% recycled plastic here in our own Midlands factory, our lawn reinforcement grids are perfect for sustainable landscaping.
Offering unparalleled grass protection, you can effectively reinforce high-traffic lawns and prevent ruts, churning and compaction in waterlogged areas.
Each grass paver grid is made to an exacting, dependable quality for trade and industry-assured standards. We're confident you'll love working with IBRAN-X Grass Parking Grids, just like the thousands of respected contractors we work with every year.
- Fully permeable, effective water drainage solution (SuDS compliant)
- Covers large areas quickly (500mm x 500mm x 40mm)
- Stabilises lawn and soils effectively.
- Rapid, push-fit, interlocking grids for quick installation.
- High load capacity: suitable for cars, LGVs/HGVs and emergency vehicles (up to 500 tonnes per square metre).
- Made in the UK by IBRAN using high quality, 100% recycled materials.
- UV stable & frost-proof (-50ºC to +90ºC)
- Part M Compliant (wheelchair friendly)
- Suitable for a wide range of light to heavy duty domestic or commercial applications.
- Long term, 25 year warranty (subject to documented installation - see our installation guide)

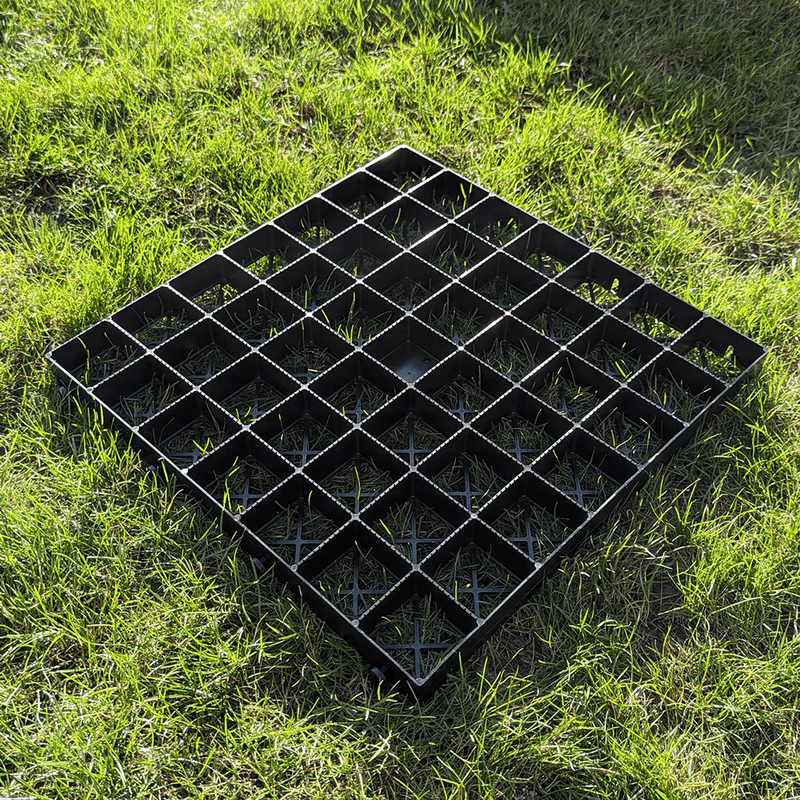

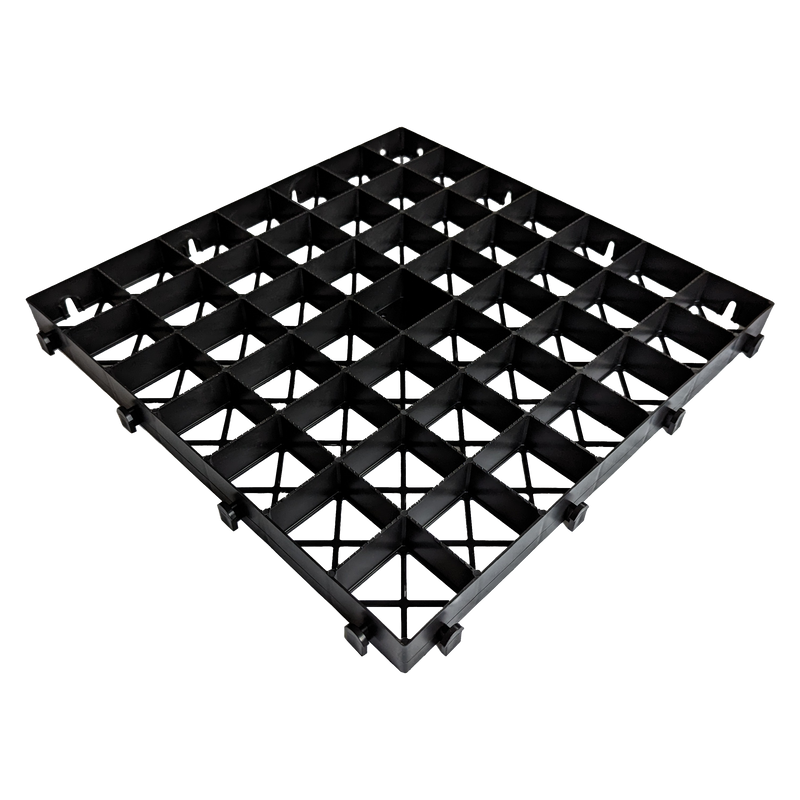

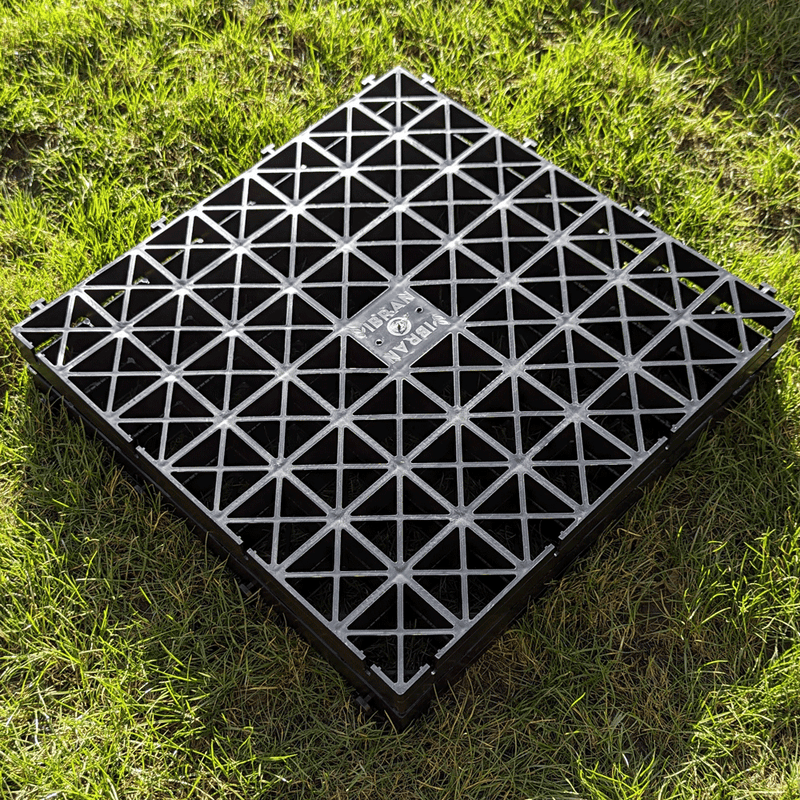

Grass Parking Grids Specifications
| Dimensions: | 500mm x 500mm x 40mm |
| Grid Coverage: | 4 grids/m2 |
| Ribbed Wall Thickness: | 3.5mm |
| Colour: | Black (others available on request) |
| Cellular Space: | 68mm x 68mm Squares |
| Weight: | 860g/grid |
| Load Capacity: | 500 tonnes per sqm |
| Axle Load Capacity: | 30 tonnes |
| Material: | 100% recycled PP/HDPE |
| Temperature Stability: | -50ºC to +90ºC |
| Recommended Fill: | Soil + Seed/Turf |
| Environmental: | None toxic, chemically inert & reusable |
| Slope Tolerance: | 25% / 15º |
| Compliance: | SuDS & Part M Compliant |
| Nature: | Tree Safe |
Balancing natural appearances with longlasting durability.
Create a durable, stable grass/lawn parking surface without compromising on its natural appearance. Our lawn reinforcement grids prevent ruts, soil compaction and your turf being churned up.
Made from sustainable, 100% recycled polypropylene, no chemicals leech into the soil whilst the reinforced mesh structure allows rainwater to soak through the soil naturally. As the top of the grids provide a solid surface to walk and drive over, they spread any weight/load evenly, preventing compaction and dips.
Lawn drainage
If your garden becomes waterlogged and the subsoil is difficult to replace, installing IBRAN's permeable pavers aids in water runoff control. It also ensures that high traffic lawns and grass are protected from wear.
Easy Installation

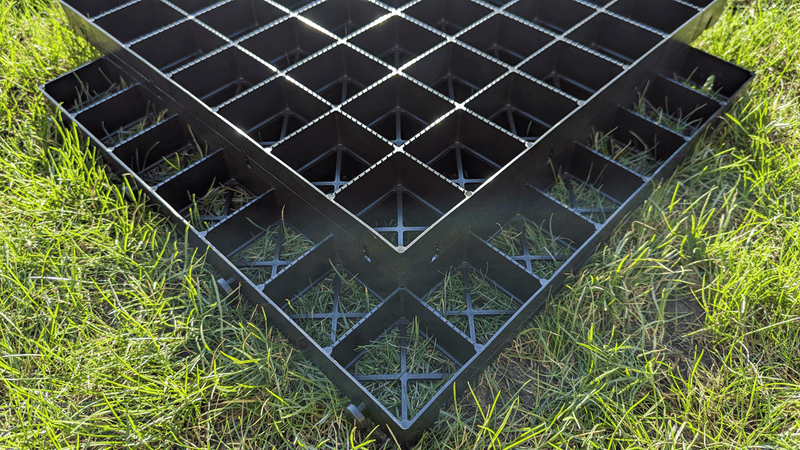

With interlocking clips pre-moulded into all four sides of the grids, you can create natural-looking grass driveways and parking areas in minutes.
First prepare your surface by digging out an area to a 40mm depth, assemble your grids within the hole and simply re-fill with any soil and seed combination that suits you. Alternatively, lay the grass grids directly onto free draining, compacted ground and fill.
For the very best results, you may want to consider a 50-80mm sub base of type 1 MOT. See below for more details.
All Weather Parking
Want a discreet, natural looking parking surface? IBRAN-X grass pavers are virtually invisible when filled with grass.
IBRAN-X Grass Grids are designed to reinforce your grass parking space, helping you drive on and off in all weathers, with no wheel spin and no shredded turf.
Overflow grass parking, driveways and even lawns are easily reinforced with our interlocking grass driveway grids.
